Key Features:

• Minimalist Design, Maximum Durability
  Sleek and modern appearance with a robust structure that fits seamlessly into contemporary bathroom interiors.

• Compatible with 10mm Glass
  Optimized for standard 10mm tempered glass panels, ensuring safety and stability.

• Integrated Soft-Brake Mechanism
  Delivers a smooth, quiet, and effortless sliding experience, enhancing both functionality and user comfort.

• Concealed Roller System
  Offers a frameless, seamless look by hiding mechanical components for a cleaner aesthetic.

• Simplified Installation
  Reduced number of components streamlines the installation process and minimizes setup time.

• Reliable Load Capacity
  Supports up to 45 kg, suitable for most residential and commercial glass door applications.

Material: Aluminum and #304 Stainless Steel

For Glass thickness 10mm (Tempered glass required)

Maximum loading weight: 45kg

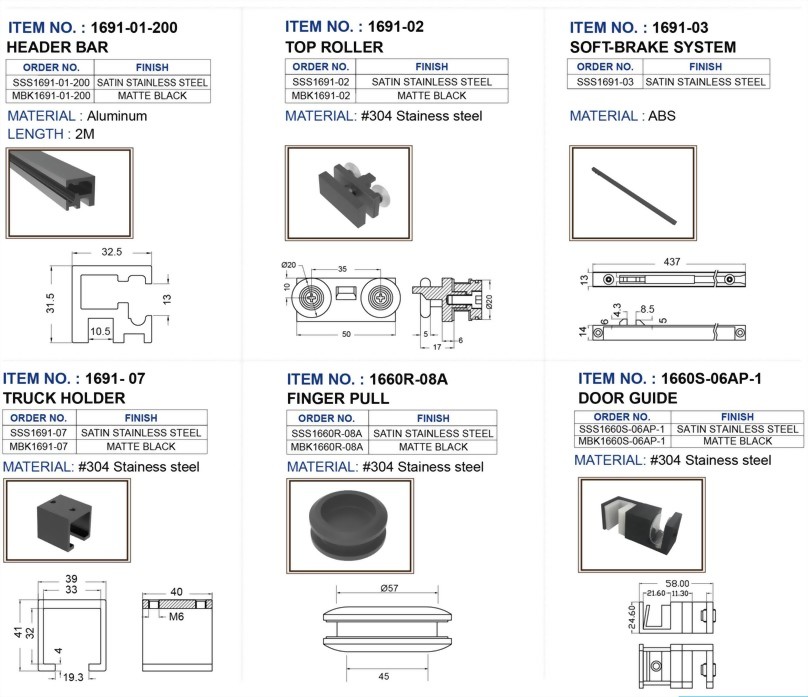

Standard package：

• 1691-01-200 Header（200m x 1pc）

• 1691-02 Roller（2 pcs）

• 1691-03 Soft-brake system（2pc）

• 1660S-06AP-1 Door guide（1 pc)

• 1691-07 Truck holder（2 pcs)

• 1660R-08A Finger pull（1pc）
